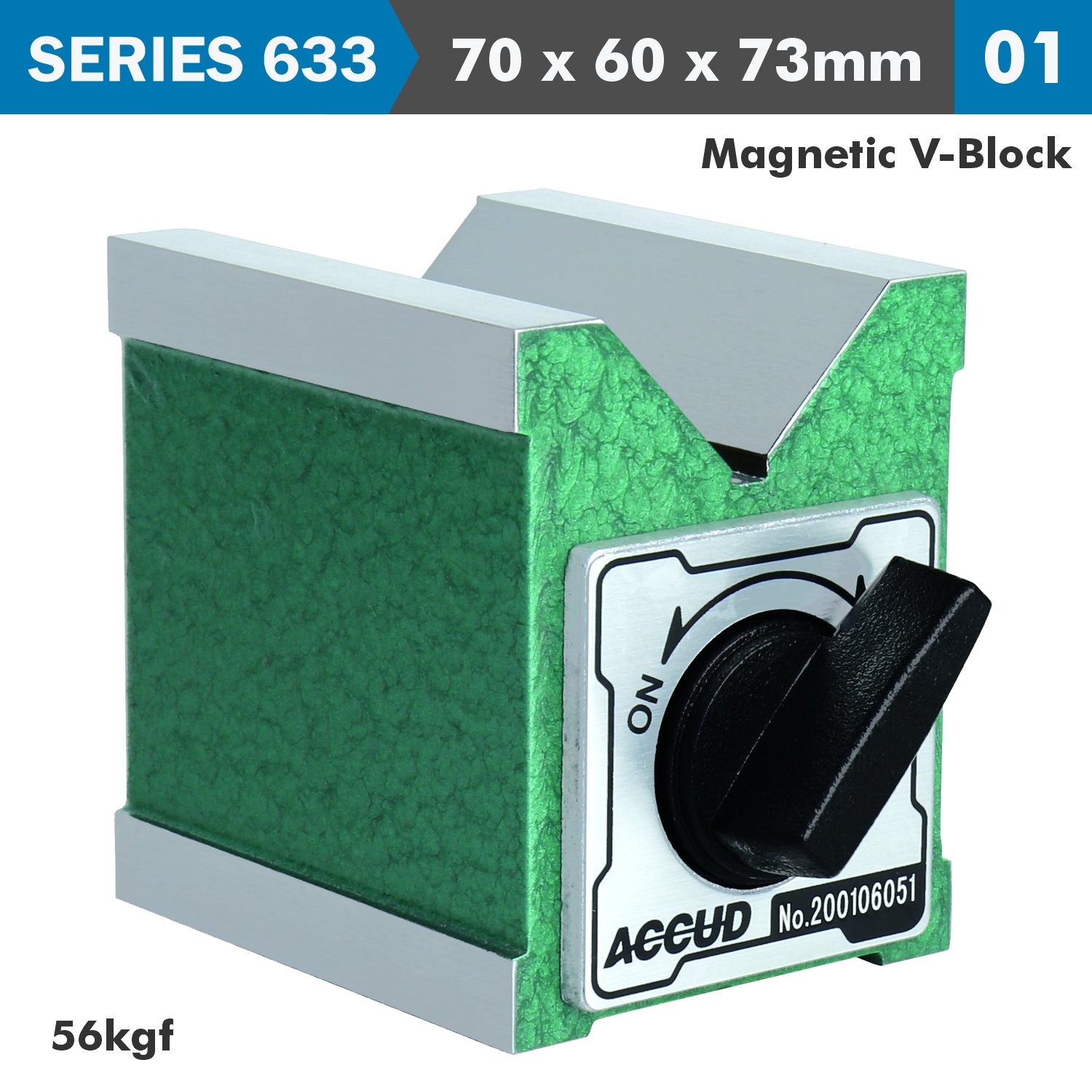

A Magnetic V-Block is a precision tool used to securely hold cylindrical or round objects, as well as small flat workpieces, during machining, inspection, or marking. It has a distinctive ‘V’-shaped groove, typically at a 90-degree angle, which is designed to cradle the workpiece and hold it securely in place. The magnetic feature enables it to hold ferrous materials without additional clamping or fixtures.

Common Applications:

• Machining: Provides stability for cylindrical workpieces during grinding, milling, or drilling.
• Inspection: Holds parts securely for measurement and inspection using gauges, calipers, or other tools.
• Marking and Layout: Assists in marking or layout work on round or irregularly shaped objects.

Overall, Magnetic V-Blocks are essential in metalworking and machining environments for improving accuracy and efficiency in handling various workpieces.
